Product Details:
|
| Name: | Star / Pleat Bag, Extend Filter Surface Bag | Felt: | PPS |
|---|---|---|---|
| Diameter: | 150mm | No. Of Pleats: | 8 Pleats |
| Head: | Seal Cuff | Shipping: | Sea, Air, Courier |
| Pack: | Polybag Or Carton | Leadtime: | Negotiable |
| High Light: | Pleated Filter Bags 150mm,Seal Cuff Pleated Filter Bags,150mm PPS Filter Bag |
||

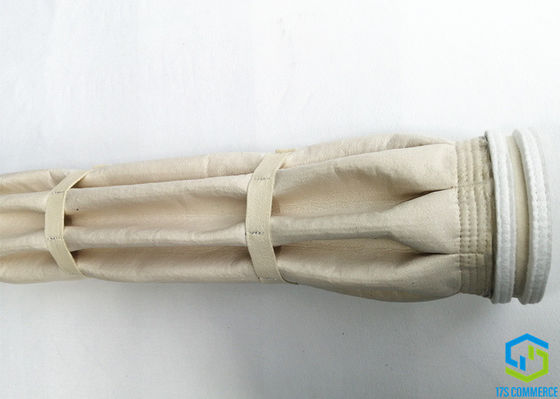

Extend Filter Area Star Bag 150mm Diameter PPS Dust Collect Pleat Bag PPS Star Bag Wrinkled Bag
Description
1. Increased 50% to 150% filtration area, fit to be manufactured with different materials such as polyester pleated bags, nomex pleated filter bags…ect.
2. Reduced the running resistance of equipment to 600 to 800pa.
3. Solved the problem of dust emission standard, dust discharge concentration below 5mg/m3 for pleated filter bag dust collecting system.
4. Life time of dust collecting pleated filter bags is longer than normal round filter bags, saved frequency changing bags.
Characteristics
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8 pleats | ||
| Material | PPS | ||
| Diameter | 150 | mm | |
| Length | TBD | mm | |

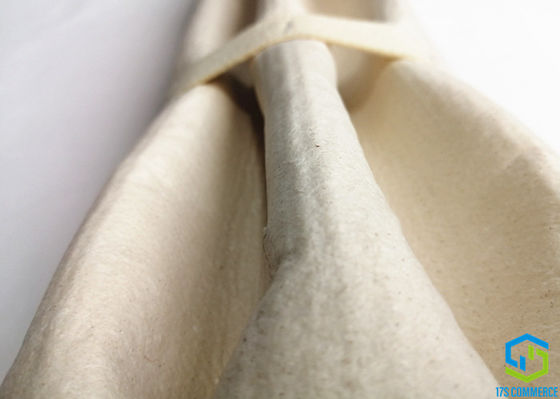

| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 150 | mm |

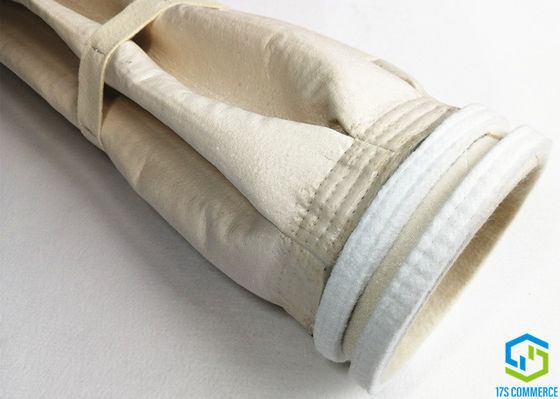

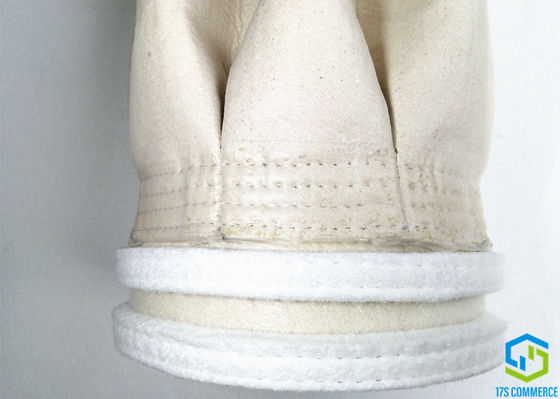

| Cuff | Type | seal cuff | |
| Width | 10-12mm | ||
| Thickness | 8-10mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 150 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface increased (%)
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 |
| 12 pleats | 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 |
