Product Details:
|
| Felt: | Polyester (PE) | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
|---|---|---|---|
| Bag Diameter: | 120mm | Cage Diamter: | 110mm |
| Bag Pack: | Plastic Bag/ Carton And Pallet | Cage Pack: | Steel Crate |
| Application: | Bag House | Origin Of Place: | China |
| Shipping: | Negotiable | Payment Terms: | Negotiable |
| High Light: | 120mm industrial filter bags,Polyester Industrial Filter Bags,star polyester filter bag |
||

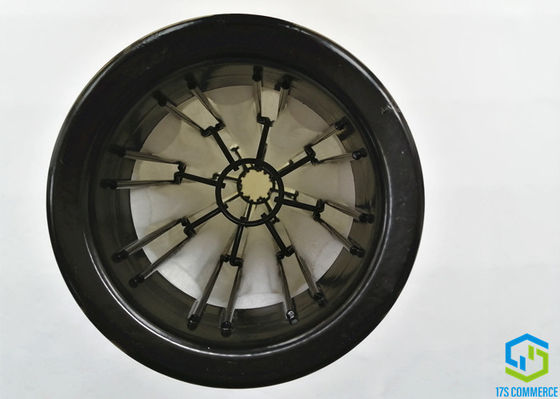

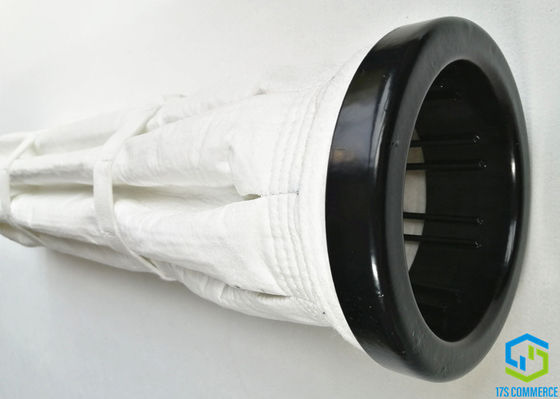

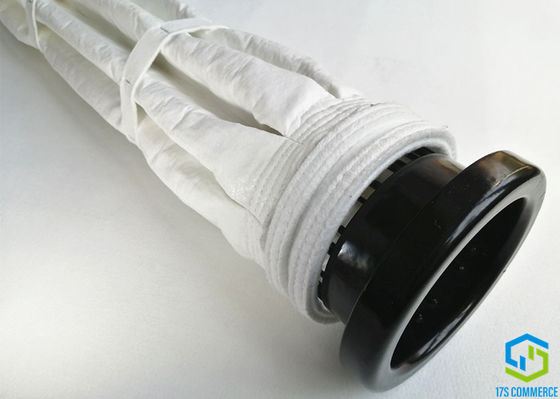

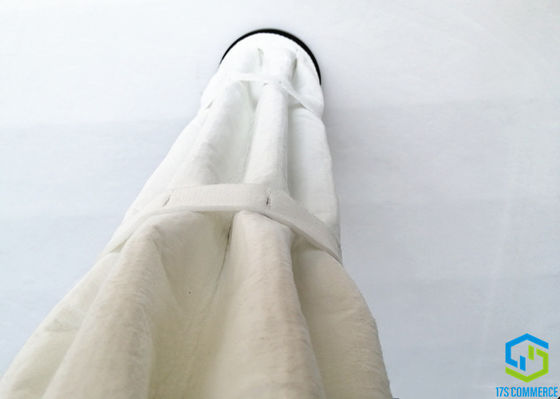

PE Pleat Bag And Cage Production Capacity Increase GTC Star Bag and Cage 120 Star Bag And 110 Star Cage
1. specification
Star filter bags (Star bags) and Star filter cages (Star Cages) are special design to extend the filter surface. They are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. Pleated/star filter bags have received a considerable amount of attention due to their higher filtration area compared to that of cylindrical filter bags. They can be used to increase both the filtration efficiency and dust holding capacity, as it is possible to decrease the filtration velocity when using the same amount of exhaust gas. The effective filtration area of pleated/star filter bags increases up to 140% in pulse-jet bag house systems, comparing with those of a cylindrical filter bag.
2. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
3. Features:
Polyester needle felt is the most versatile, most cost effective and most widely used filter medium for dust collection. It is strong, abrasion resistant, can work up to 150°C and has good resistance to common acids, solvents and oxidising agents.
Polyester's only real weakness is a tendency to hydrolyse at elevated temperature which means that moisture can break down the fibres and cause them to revert to their basic constituents. This results in powdering of the fibres and a serious loss of strength.
4. Applications:
Because of its favourable price/quality ratio, polyester is the most common fibre used in filter media.
• Mining
• Cement Industry
• Iron and Steel Industry
• Aluminum and Non Ferrous Industry
• Ceramic Industry
• Quarrying
• Plastics
• Milk Powder
• Flour Mills (Applications under dry conditions up to temperatures of 150°C)
