Product Details:
|
| Felt Material: | Polyester (PE) | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
|---|---|---|---|
| Bag Diameter: | 150mm | Cage Diameter: | 138mm |
| Bag Length: | TBD | Cage Length: | TBD |
| Delivery Date: | Negotiable | Origin Of Place: | China |
| Price: | Negotiable | Payment Terms: | Negotiable |
| High Light: | pleated polyester filter bag,PE polyester filter bag,150mm pleated filter bag |
||

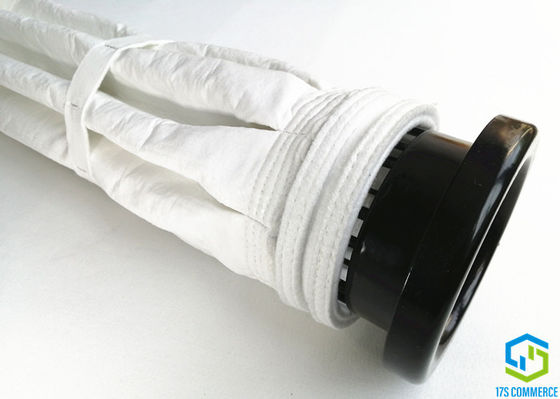

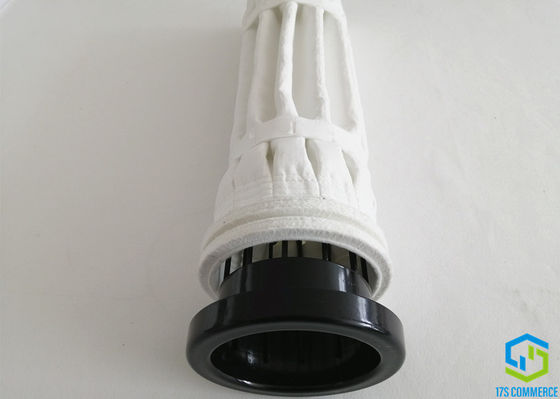

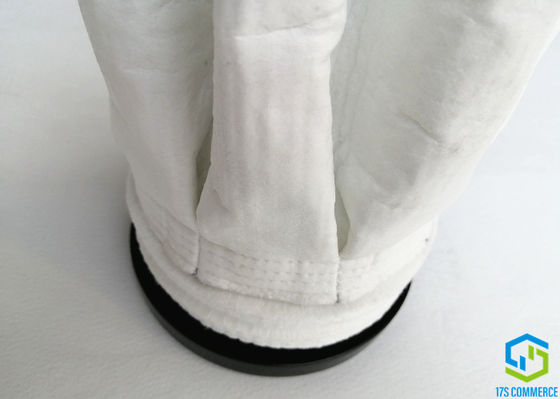

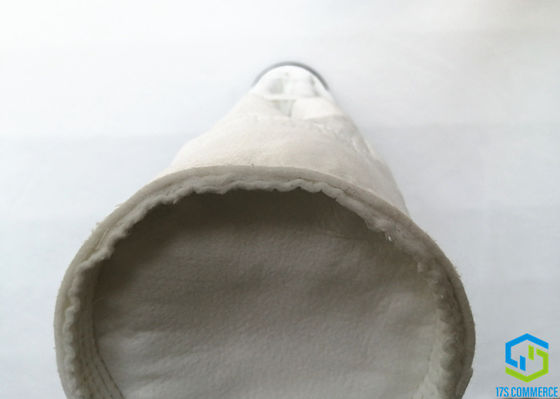

PE Star Bag And Cage Energy Consumption And Maintenance Cost Reduce GTC PE Star Bag 150 Pleat Bag And 138 Pleat Cage
1. The Match of Star bags and Cages
The air-to-cloth ratio of a given filter material and filter surface, dust retention and filter cake release determine the efficiency of the fabric filter pulse jet bag shell. In this regard, the pulse jet filter bag of the prior art is limited by the perimeter of the filter bag. Increasing the size of the filter housing to increase the perimeter of the filter bag and thus the efficiency of the filter often results in an expensive and bulky filter housing.
The pleat/star bag has the advantage of either taking the same filter surface of conventional cylindrical filter bags and reducing the diameter (thus reducing the spaced need for filter elements) or taking the diameter of standard filter bags and increasing the filter surface available. The pleat/star filter bag can be made out of any type of filter material, and can be used from normal temperature conditions going up to 280° C. or 530° F.
Star/pleat filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 |
|||
2. How to choose star filter bags
Main features of the performance of star bags
| Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
| Continuous Dry Heat Operation | 94℃ | 135℃ | 135℃ | 190℃ | 204℃ | 240℃ | 260℃ | 260℃ | |
| Continuous Moist Heat Operation | 94℃ | 94℃ | 125℃ | 190℃ | 177℃ | 195℃ | 260℃ | 260℃ | |
| Max Short Term Dry Heat | 107℃ | 150℃ | 150℃ | 232℃ | 240℃ | 260℃ | 290℃ 4 | 290℃ | |
| Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
| Moisture Regain (20℃ and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
| Supports Combustion | yes | yes | yes | no | no | no | no | no | |
| Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
| Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
| Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
| Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
| Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
| Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good | |
1)Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82℃
2)PPS is attacked by strong oxidising agents (O2, NOx, Br2) – the presence of which, lower its recommended operating temperature
3)P84 is attacked by Sox in power station applications
4)PTFE will elongate under load at elevated temperature
3. Pack of Star/ pleat Cages
4. Some enduser
Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German) and so on.
