Product Details:
|
Felt: | PTFE | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
---|---|---|---|
Bag Diameter: | 120mm | Cage Diamter: | 110mm |
Bag Pack: | Plastic Bag/ Carton And Pallet | Cage Pack: | Steel Crate |
Application: | Bag House | Origin Of Place: | China |
Shipping: | Negotiable | Payment Terms: | Negotiable |
High Light: | Industrial Filter Bags 120mm,PTFE Industrial Filter Bags,120mm dust collection bag |

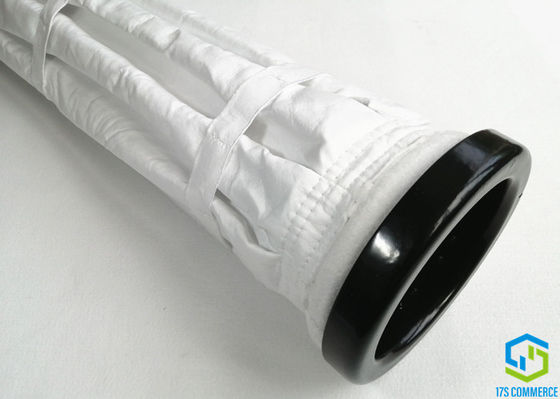

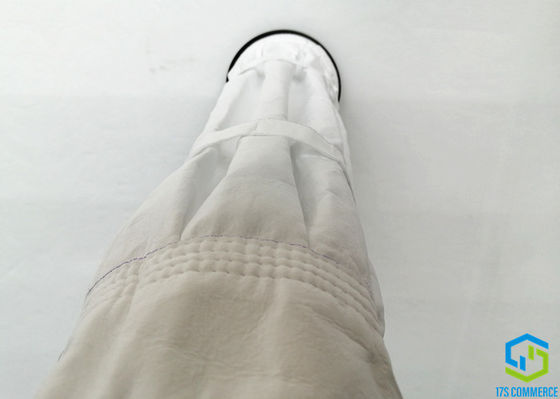

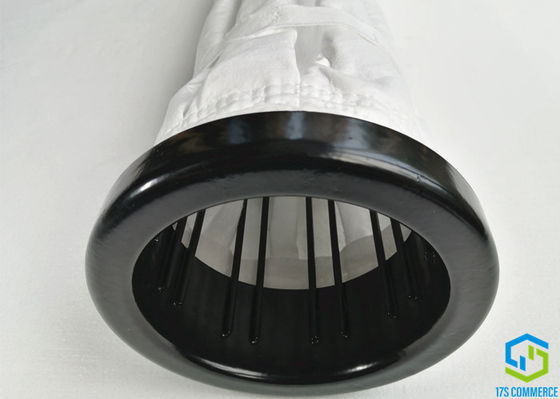

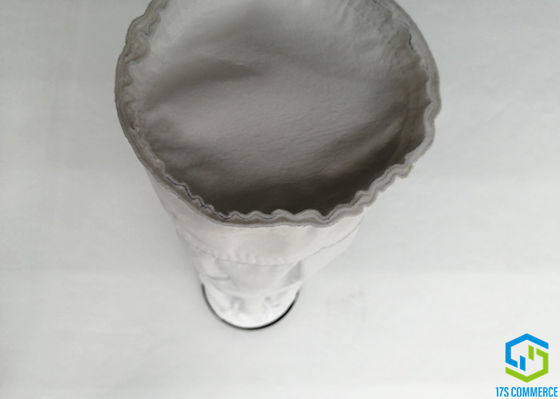

PTFE Pleat Bag And Pleat Cage Production Capacity Increase PTFE Bag 120 Star Bag And 110 Star Cage
1. specification
Star filter bags (Star bags) and Star filter cages (Star Cages) are special design to extend the filter surface. They are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. The resulting filter star/pleat bag achieves a filtration surface which is up to 2.4 times as large as a conventional filter bag of the same diameter and length. Moreover, as the resulting filter star/pleat bag is stabilized by the pleat/star cage and bands, the filter material can be moved more during the pulse-jet cleaning cycle, therefore it can be cleaned more easily. This reduces the compressed air and effort required in the pulse-jet cleaning cycle. Additionally, the star cage substantially facilitates and reduces the cost of transportation.
2. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
cage | bag | |||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 | |||
12 pleats | 12 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
10 pleats | 10 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 |
3. Features:
PTFE needle punched felt are produced from 100% PTFE fiber which has been punched in three-dimentional structure. They have excellent features such as excellent flexibility, molding capability, high tensile strength, creep resistance, high and low temperature resistance, corrosion resistance and anti-aging. 100% PTFE filter material can meet requirements in hostile environments of temperature fluctuating and acid & alkali in all PH range. The lifespan of PTFE filter material will be guaranteed for over 4 years as long as the temperature is controlled under the maximum operating temperature
• Be composed of 100% pure PTFE;
• Can operate at 240 °C continuously;
• Acid and alkali Resistance, corrosion resistance,have storong chemical stability (0-14 PH)
• Can be used under high humidity environment;
• Low shrinkage rate even if under high temperature,
• Aging resistance;
• No enviroment pollution
4. Applications:
• Combustion
• Coal burning boiler
• waste incineration
• carbon black producing
• Tio2 producing for fume treatment or dust collection
• Cement Kiln
• Glass plant
