Product Details:
|
| Material: | Mild Steel, Stainless Steel, Galvanized Wire | Finish Treatment: | Silicon Coating, Zinc ,electrophoresis Coating |
|---|---|---|---|
| Spiders: | Press Spider, Wire Spider | Diameter: | 110mm, 120mm, 138mm And Customized |
| No. Of Vertical Wire: | 12pcs | Crate: | Steel Crate |
| Place Of Origin: | China | MOQ: | Negotiable |
| High Light: | 138mm Dust Collector Filter Cage,Aramid Dust Collector Filter Cage,12 Pleat bag filter cages |
||
Aramid 12 Pleat Star Bag Cage Aramid Felt Pleat Bag Cage Spider Cage Bag House Nomex Star Bag Cage
1. Specification

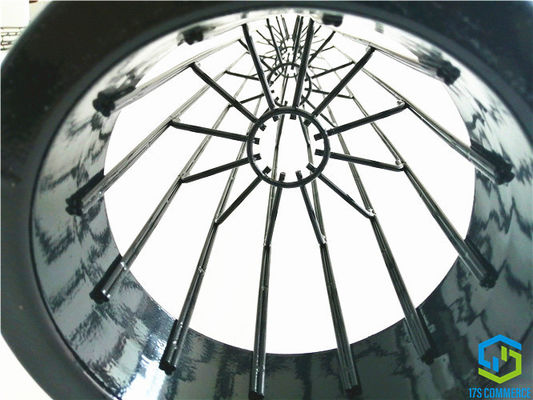

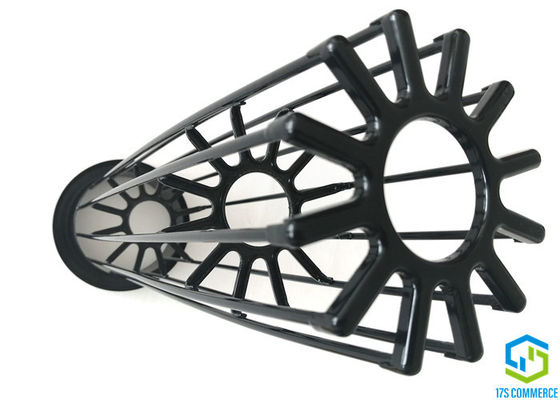

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. Overview
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 12 pleats | ||
| Material | Q235 mild steel,stainless steel,galvanized wire | ||
| Diameter | 110, 120, 138 | mm | |
| Vertical Wire | Number | 12 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | press |  |
| Thickness | 1.5 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | be up to customers | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | press bottom cap | |
| Size | 102,112,130 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||

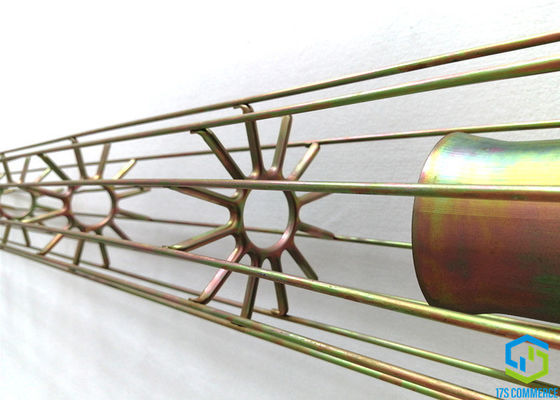

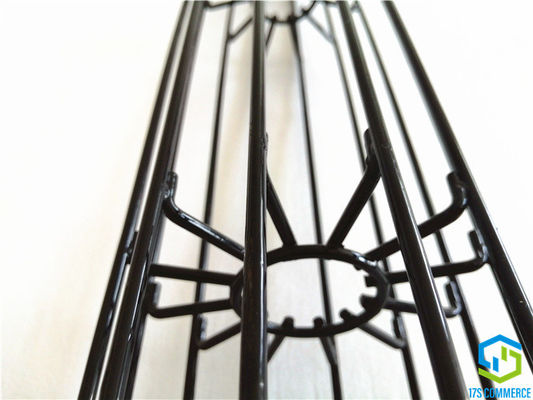

two more spider alternatives
3. Why Choose Us
1) over ten years experience in this field
2) very strict quality control management
3) perfect feed back from customers about quality,service,shipping etc
4) we have own factory, easy control of quality, leadtime, workmanship and IP protection
5) many big and famous customers buy our products consistently
6) strong R&D team, design and develop and product ability
7) QC and QA inspection before shipping
8) 100% products exported, know customers’ requires
9) Zero complain and claim of our products till now
4.Pack of Cages
Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
