Product Details:
|
| Felt: | Polyester (PE) | Cage Material: | Carbon Steel, Stainless Steel, Galvanized Wire |
|---|---|---|---|
| Fabric Finishing: | Heat Setting、Singing、Impregnation、PTFE Lamination | Cage Finishing: | Silicon Coating, Zinc Coating, Electrophoresis Coating |
| Bag Diameter: | 160mm | Cage Diameter: | 150mm |
| Bag Length: | To Be Discussed | Cage Length: | To Be Discussed |
| Shipping Date: | To Be Discussed | Place Of Origin: | China |
| High Light: | Round Band Pleated Filter Bag,Folding Style Pleated Filter Bag,Silicone Non woven Filter Bag |
||

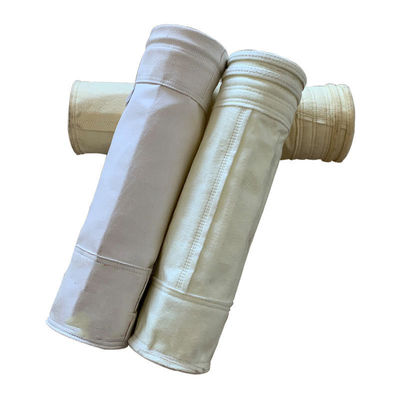

Filter Bag Silicone Round Band Pleated Filter Bag Folding Style Filter Bag For Industrial Filtration
Features and Benefits
Our polyester needle felt shows the performance of smooth surface, stable structure, Good air permeability and easy-cleaning. It is resistant to adhesion and easy to peel. It is use in applications with high moisture conditions. Widely used in cement, gold, food, coating, petrochemical plastics and other industrial fields of flue gas and dust recovery.
The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
|
Polyester Needle Felt /Filter Bag Specification
|
|
|
Item
|
Polyester Non-woven Needle Felt
|
|
Construction
|
Polyester Fiber, Polyester Scrim
|
|
Material Choose
|
Polyester /Aramid /Acrylic /PP/ PPS /PTFE /P84/Fiberglass
|
|
Weight
|
450GSM, 500GSM, 550GSM, 600GSM or customized.
|
|
Temperature
|
130-150 °C
|
|
Feature
|
1.Moderate acid and alkali resistance, good wear resistance
2.It show the finishing surface, stable structure and good performance of air
permeability, easy-cleaning.
3.t is resistant to adhesion and easy to peel.
|
|
Size
|
Customized
|
|
Normal Finishing
|
Singeing, Calendering, Heat set.
|
|
Functional Finishing
|
Anti-static, Water and oil repellent, PTFE membrance, PTFE coating.
|
|
Application
|
Widely used, strong chemical stability, according to different dust characteristics, mixed with antistatic fiber, PTFE film, water and oil repellent, emulsion impregnation and other treatment methods.
|
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
Star/ pleat bag and cage on site
Shipping of star bag and cage
Based on volume, schedule and customer's requiry we supply different shipping terms as below.
Contact Person: Alex. Wu
Tel: +8613776264607
