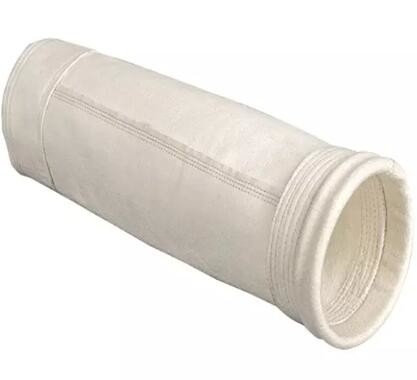

High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric

High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric
High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric
High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric

Large Image :  High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric

Product Details:
Place of Origin: China
Brand Name: 17s
Certification: ISO
Model Number: 150mm Star / Pleat filter bag
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Polybag and Pallets or carton and pallet
Delivery Time: TBD
Payment Terms: T/T, L/C
Supply Ability: TBD

High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric

Description
Name: Star / Pleat Bag, Extend Filter Surface Bag Felt: PPS
Diameter: 150mm No. Of Pleats: 8 Pleats
Head: Seal Cuff Shipping: Sea, Air, Courier
Pack: Polybag Or Carton Leadtime: Negotiable
High Light:

PPS Pleated Filter Bags

,

High Temperature Resistant Pleated Filter Bags

,

Non Woven Fabric pleated bags

High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric Dust Filter Bags



Non-Woven Filter Bags
Filter bags are created from carefully selected material in order to achieve optimal filtration performance. Needle felt, monofilament, and multifilament media are among the media utilized. They are effective at lowering dust emission levels to meet industry requirements. These bags are placed in a dust collector with filter cages to support them. Contaminated air travels from the outside to the inside of the building, where it is filtered. All solid impurities are deposited on the outside, while clean air/gas travels through the upper chamber.



Characteristics

Style star bag, pleat bag, extend surface/area bag
Pleats No. 8 pleats
Material PPS
Diameter 150 mm
Length TBD mm
Strap / band Type cut felt strap
afixing thread sewing to bag
Width 25 mm
Distance 250 mm
Top Opening 150 mm
Cuff Type seal cuff
Width 10-12mm
Thickness 8-10mm
Distance 4-8mm
Metal hoop inside of top yes
material 304 stainless steel
width 25-30mm
Fix sew to bag body
Boot / Bottom Diameter 150 mm
Height 100-120 mm
Reinforcement two layers
Bottom disc two layers
Metal hoop no, 20-25mm 304 stainless steel if yes
Fix sew to bag body
Seam Type thread sewing
Bag panel/body triple rows sewing
Cuff panel 2 double rows sewing
boot upper 2 double rows sewing
boot bottom double rows sewing
Pack Poly bag and pallet, or carton and pallet





Filter surface increased (%)

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 150 54.06 73.31 79.73 82.94 84.87 86.15
12 pleats 150 72.23 93.76 100.93 104.52 106.68 108.11




Application

High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric 0 High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric 1 High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric 2 High Temperature Resistant Industrial Pleated Filter Bags Non Woven Fabric 3
