Product Details:
|
| Name: | Star Bag | Felt: | Aramid / Nomex |
|---|---|---|---|
| Diameter: | 150mm | No. Of Pleats: | 8 / 12 Pleats |
| Head: | Bead Cuff | Metal Hoop: | 304 Stainless Steel |
| Bottom: | Two Layers | Length: | Customized |
| High Light: | PTFE Pleated Filter Bags,Aramid Pleated Filter Bags,Aramid pleated baghouse filters |
||

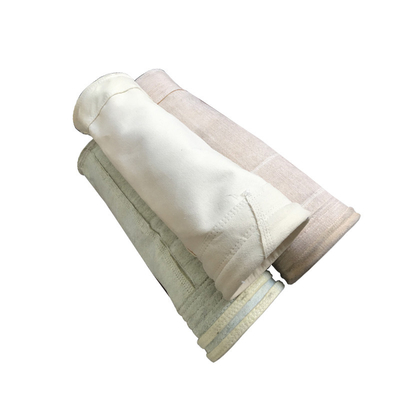

Non-Woven Pleated Filter Bags Ptfe Filter Cloth Ptfe Pleated Filter Bags
Feature
(1) Professional: provide professional technical solutions .
(2) High efficiency: first, professional engineers butt service.
(3) Satisfaction: all technical solutions are satisfied by the customer .
(4) Service: whole process tracking service of product life cycle.
(5) Best professional team of lifestyle consumer electronics.
(6) Highly competitive prices.
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8/12 pleats | ||
| Material | Aramid / Nomex | ||
| Diameter | 150 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 150 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 150 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface increase
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 |
| 12 pleats | 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 |
Pack
we put bags into carton or polybag firstly and then on pallet, in order to suit long distance transportation and product protection we use wrapping film to cover the pallet.
