Product Details:
|
| Material: | Carbon Steel, Galvanized Plate, Stainless Steel | Cage Diameter: | 80-250mm |
|---|---|---|---|
| Wire Diameter: | 3-6mm | Finishing: | Zinc, Silicon/Powder/Epoxy Coating, Electrophoresis Coating |
| Vertical Wire No.: | 8-24pcs | Venturi: | Customized |
| Top Constriction: | Weld Cap, Wire Bent, Wire Extend, Removable | Joint: | Yes, If Needed |
| High Light: | 6mm Frame Baghouse Cage,6mm Skeleton Dust Filter,Customized Dust Collector Cage |
||
Dust Filter Cage Filter Bag Cage Dust Skeleton Filter Bag Frame Baghouse Cage Dust Collector Cage
1. Specification
Cages are frameworks for bags, which is the bone of bags and supports the bags running. Both bags and cages are the most important element for bag houses. Star Cages are welded by special supporting rings (Spiders). We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Procedure of cage making
| 1 | stretch line | streth 6 or 6.5 raw wire to roll diameters wires for cages, normally 3mm, 3.5mm and 4mm, |
| 2 | cut line | cut roll wires to fixed length based on cage sizes |
| 3 | weld body | weld vertical wires and suppoting ring together |
| 4 | weld top and bottom cap and venturi | weld top and bottom cap to cage, venturi if necessary |
| 5 | coating | silicon or zinc coating if necessary |
| 6 | inspect and fix | inspect weld loose, burs, coating etc and fix |
| 7 | pack | put cages into steel crates |

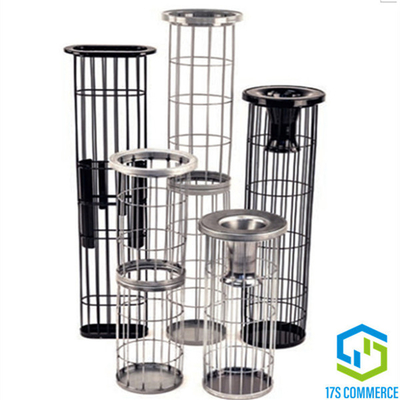

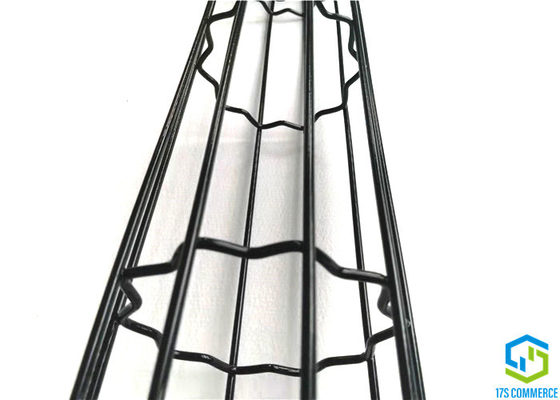

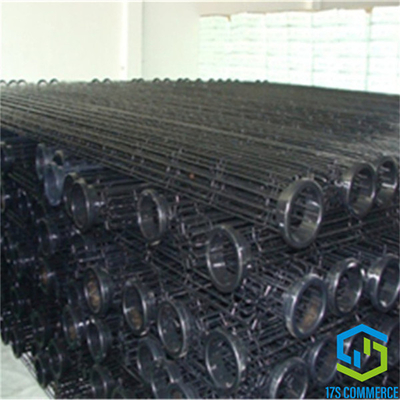

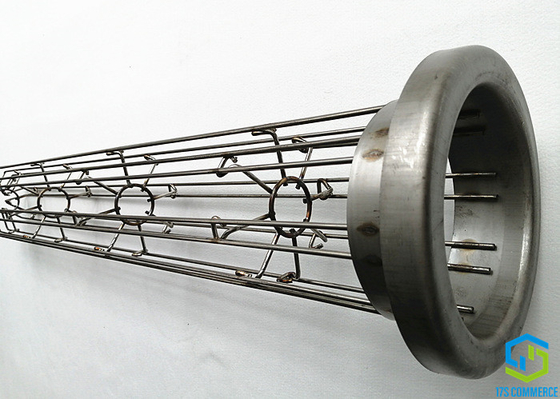

Cage Style: round cages, oval cages and pleats star cages
construction of cages
| style | Vertical Wire QTY | Diameter of Wire | Supporting Ring | Top Cap | Bottom Cap | Connection |
| round cage | 8-24 | 4 / 3.5 /3.2 /3 | wire, round | optional | weld, crimp, wire bent | twist lock, sure lock, finger lock |
| oval cage | 10, 14 | 4 | wire, oval | oval | weld | slide lock |
| star/ pleat cage | 8,10, 12, 16 | 4 | press, wire | optional | weld or wire bent | global joint |
Optional Material: carbon steel, galvanized wire, stainless steel
Cage Diameter: customized

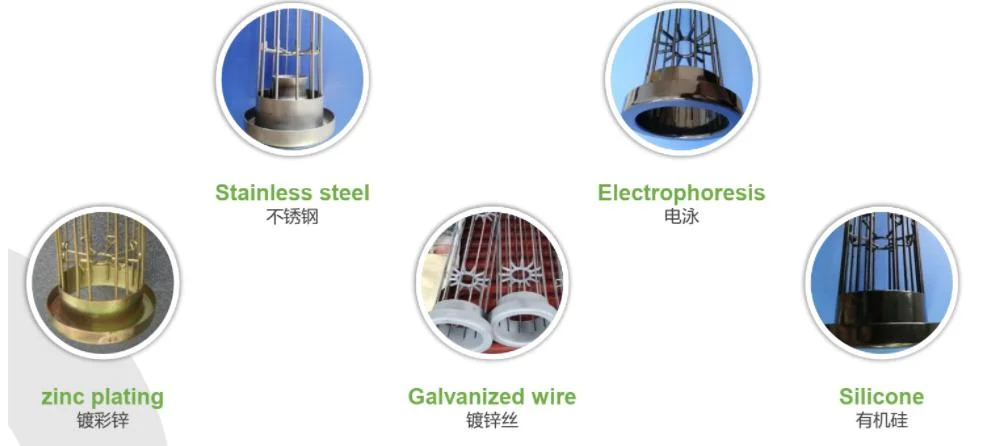

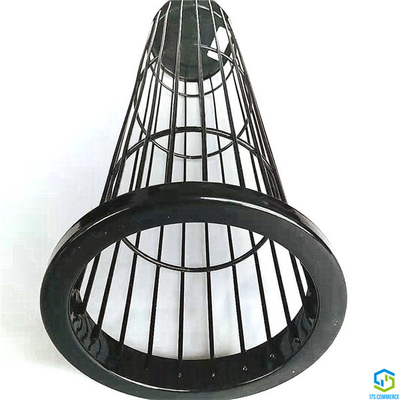

Star Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating

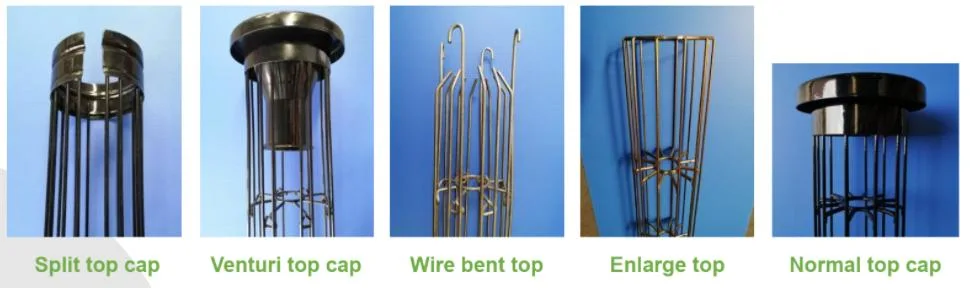

Cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires bent (hook) top, enlarged top ring etc

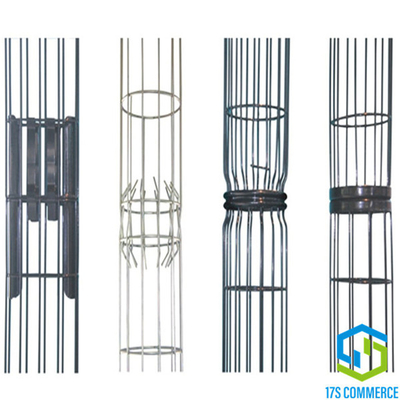

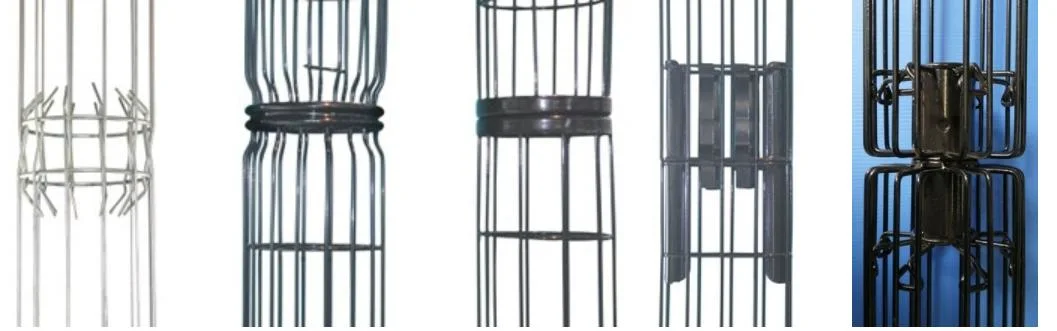

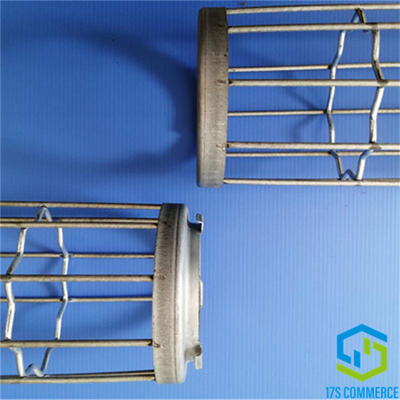

Cage Connection: cages were too long or top space of bag house was not enough, we suggest make cages in sections with joint like below
Pack of Cages

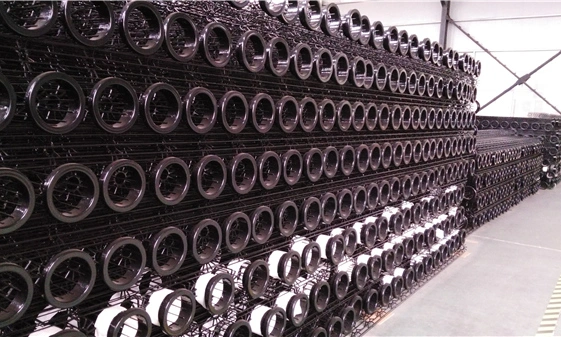

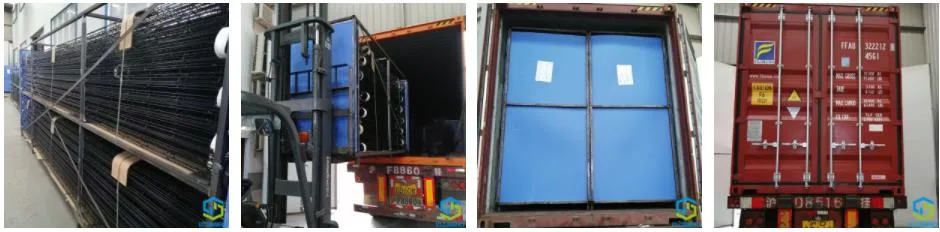

Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
Shipping of cage
Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.
