Product Details:
|
| Cage Material: | Stainless Steel,Carbon Steel, Galvanized Wire, | Cage Finish Treatment: | Silicon Coating, Zinc Coating, Electrophoresis Coating |
|---|---|---|---|
| Bag Material: | 240 ℃ Continuous And 260 ℃ Peak | Bag Finishing: | Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation And So On |
| Bag Head: | Seal Cuff, Bead Cuff | Cage Top Cap: | Ordinary Cap, Venturi Top, Mikopul Cap, Hook Top, Ring Top, ETC |
| Cage Joint: | Twist Lock, Finger Lock, Slide Lock, Global Joint Lock | Cage Style: | Round, Oval Cage, Star/ Pleat Cage |
| High Light: | ODM P84 Filter Bags,600gsm P84 Filter Bags,P84 dust collector filter bag |
||

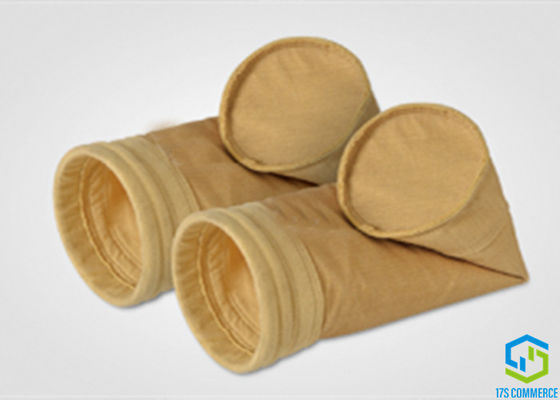

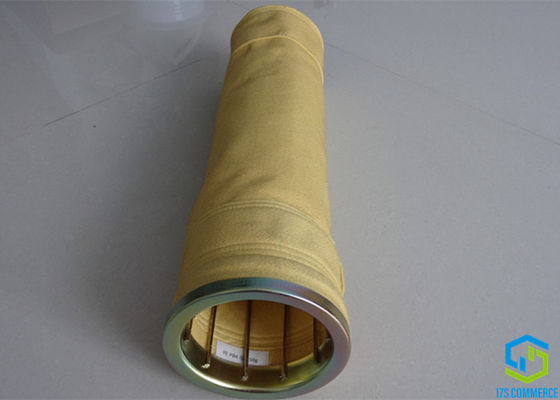

P84 Dust Collect Bags And Cages Round P84 Bag And Cage House Bag P84 Star Filter Bag And Cage
Bags
1. Specification
P84 is fiber made by Degussa Inspec Fibres, and is a high temperature polyimide fibre. P84 can withstand up to 260℃ in dry heat conditions or 195 where high moisture is present. Unlike most other fibres, P84 has a trilobal cross section which makes its particle capture and filtration efficiency very high. In some industries P84 is used in the filtration surface of other filter media to improve the filtration efficiency. In the cement industry, P84 is the most commonly used fibre where the off gases from the kiln or clinker cooler are high.
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on

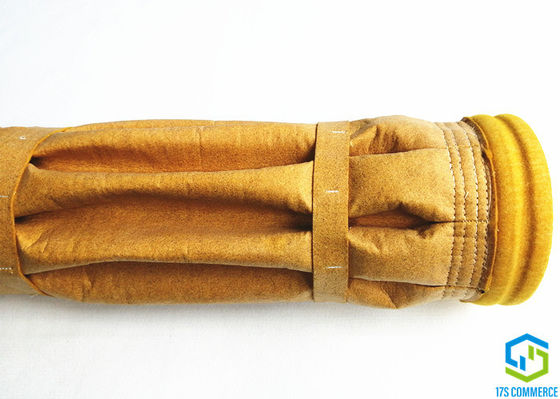

Bag Style: round bags, oval bags, 8 and 12 star/ pleats star bags
Bag Size: it is up to the CPO and installation and customized
Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen
Bag Body: Sewing or Hot sealing
Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
Construction of Filter Bags
| Style | Size | Felt/ Fabric | Body | Head | Bottom Layer | Reinforcement |
| Round, Oval, Star/pleat | Customized | Various | Sewing or Hot Sealing | Seal Cuff, Bead Cuff | Single Or Double | With Or Without |
2. Parameters of P84 Filter Bags
| Bag | P84 Filter Bag | |||||
| Felt | P84 Needled Felt | |||||
| Scrim | P84 or PTFE | |||||
| Weight | gsm | 550-600 | ||||
| Permeability | cfm | 30-45,PTFE lamination 3-7 | ||||
| Tensile Strength | Warp | ≥N | 900 | |||
| Weft | ≥N | 1200 | ||||
| Break Elongation | Warp | < % | 35 | |||
| Weft | < % | 50 | ||||
| Working Temperature | Continuous | Dry | ℃ | 240 | ||
| Moist | ℃ | 195 | ||||
| Short term | ℃ | 260 | ||||
| Dry Shrinkage | Warp | <% | 1.5 | |||
| Weft | <% | 1.5 | ||||
| Specific Density | 1.41 | |||||
| Support Combustion | no | |||||
| Resistance | Hydrolysis | fair | ||||
| Biological (mildew, bacteria) | no effect | |||||
| Alkalis | fair | |||||
| Mineral Acids | very good | |||||
| Orgnic Acids | very good | |||||
| Oxidising Agents | very good | |||||
| Orgnic Solvents | excellent | |||||
| Finishing | singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc | |||||
3. Lab test
Cages
1. Specification

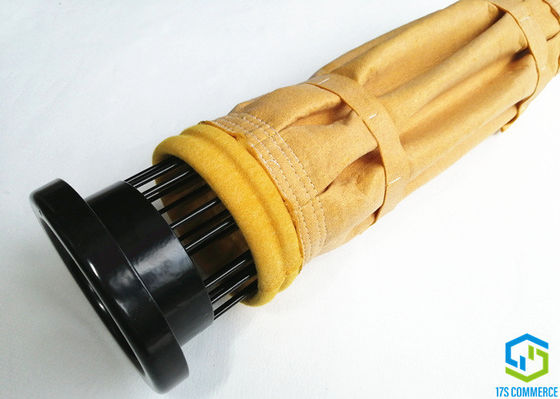

Cages are frameworks for bags, which is the bone of bags and supports the bags running. Both bags and cages are the most important element for bag houses. Star Cages are welded by special supporting rings (Spiders). We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Procedure of cage making
| 1 | stretch line | streth 6 or 6.5 raw wire to roll diameters wires for cages, normally 3mm, 3.5mm and 4mm, |
| 2 | cut line | cut roll wires to fixed length based on cage sizes |
| 3 | weld body | weld vertical wires and suppoting ring together |
| 4 | weld top and bottom cap and venturi | weld top and bottom cap to cage, venturi if necessary |
| 5 | coating | silicon or zinc coating if necessary |
| 6 | inspect and fix | inspect weld loose, burs, coating etc and fix |
| 7 | pack | put cages into steel crates |
Cage Style: round cages, oval cages and pleats star cages
construction of cages
| style | Vertical Wire QTY | Diameter of Wire | Supporting Ring | Top Cap | Bottom Cap | Connection |
| round cage | 8-24 | 4 / 3.5 /3.2 /3 | wire, round | optional | weld, crimp, wire bent | twist lock, sure lock, finger lock |
| oval cage | 10, 14 | 4 | wire, oval | oval | weld | slide lock |
| star/ pleat cage | 8,10, 12, 16 | 4 | press, wire | optional | weld or wire bent | global joint |
Optional Material: carbon steel, galvanized wire, stainless steel
Cage Diameter: customized
Star Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating
Cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires bent (hook) top, enlarged top ring etc
Cage Connection: cages were too long or top space of bag house was not enough, we suggest make cages in sections with joint like below
