Product Details:
|
| Material: | P84 Felt | Weight: | 500-650gsm |
|---|---|---|---|
| Bag Material: | 240 ℃ Continuous And 260 ℃ Peak | Bag Finishing: | Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation And So On |
| Bag Head: | Seal Cuff, Bead Cuff | Size: | Customized |
| Pack: | Carton And Pallet | MOQ: | Negotiable |
| High Light: | Round P84 Filter Bags,650gsm P84 Filter Bags,P84 baghouse filter bags |
||

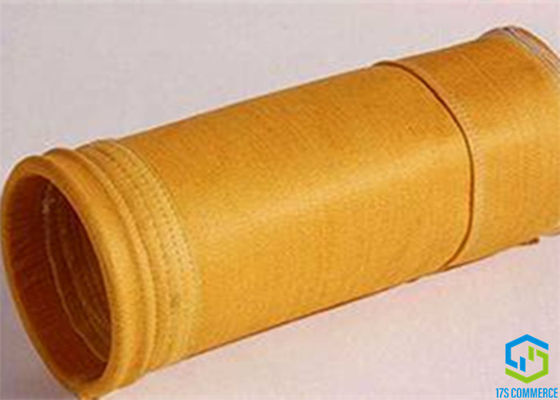

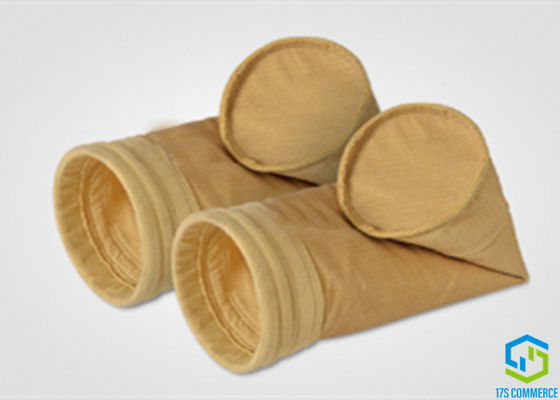

Round P84 Dust Collect Bag P84 Bag House Filter Bag P84 Felt Cage Bag
1. Specification
P84 is fiber made by Degussa Inspec Fibres, and is a high temperature polyimide fibre. P84 can withstand up to 260℃ in dry heat conditions or 195 where high moisture is present. Unlike most other fibres, P84 has a trilobal cross section which makes its particle capture and filtration efficiency very high. In some industries P84 is used in the filtration surface of other filter media to improve the filtration efficiency. In the cement industry, P84 is the most commonly used fibre where the off gases from the kiln or clinker cooler are high.
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on
Bag Size: it is up to the CPO and installation and customized
Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen
Bag Body: Sewing
Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
2. Parameters of P84 Filter Bags
| Bag | P84 Filter Bag | |||||
| Felt | P84 Needled Felt | |||||
| Scrim | P84 or PTFE | |||||
| Weight | gsm | 550-600 | ||||
| Permeability | cfm | 30-45,PTFE lamination 3-7 | ||||
| Tensile Strength | Warp | ≥N | 900 | |||
| Weft | ≥N | 1200 | ||||
| Break Elongation | Warp | < % | 35 | |||
| Weft | < % | 50 | ||||
| Working Temperature | Continuous | Dry | ℃ | 240 | ||
| Moist | ℃ | 195 | ||||
| Short term | ℃ | 260 | ||||
| Dry Shrinkage | Warp | <% | 1.5 | |||
| Weft | <% | 1.5 | ||||
| Specific Density | 1.41 | |||||
| Support Combustion | no | |||||
| Resistance | Hydrolysis | fair | ||||
| Biological (mildew, bacteria) | no effect | |||||
| Alkalis | fair | |||||
| Mineral Acids | very good | |||||
| Orgnic Acids | very good | |||||
| Oxidising Agents | very good | |||||
| Orgnic Solvents | excellent | |||||
| Finishing | singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc | |||||
