Product Details:
|
| Felt: | P84 | Bag Diameter: | 120mm, 130mm, 150mm, 155mm, 160mm |
|---|---|---|---|
| Bag Pack: | Carton And Pallet | Application: | Bag House |
| Origin Of Place: | China | Shipping: | Negotiable |
| Payment Terms: | Negotiable | ||
| High Light: | 8 Pleat baghouse dust collector,P84 baghouse dust collector,P84 baghouse filter bags |
||

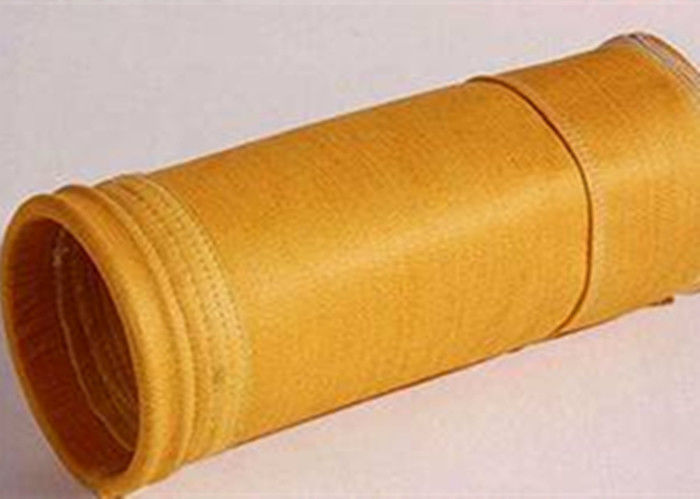

8 pleat P84 Star Bag Dust Collector P84 Felt Pleat Bag High Efficient Expand Filter Area Bag
1. specification
Star filter bags (Star bags) and Star filter cages (Star Cages) are special design to extend the filter surface. They are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. They are also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
3. Features:
P84 polyimide needlefelts are excellent high temperature filter media in terms of performance, generally surpassing the other standard media with the exception of PTFE.
• Excellent steady under high temperature and resistance to acid
• P84 can operate continuously, under practical and low acid working conditions, at temperatures up to 500°F(260 °C).
• High filtration efficiency, high tensile strength.
• The complex cross sectional shapes create 30-90% more collection surface area when compared to round or oval shaped fibers.
• Low back washing pressure, maximun flexibility
• The unique tri-lobal fiber structure of P84 provides customers with high efficiency filtration, low pressure drop, and reduced cleaning energy.
• Excellent dust cake release
• P84 has irregular, tri-lobal fibers that provide better collection efficiencies and enhanced dust cake release properties.
4. Applications
• Incinerator plants
• Cement Kiln gas
• Low acid coal fired boilers
• Asphalt/hot mix plants flue gas
• Minerals processing
• Soil remediation facilities
