Product Details:
|
Felt Material: | Aramid / Nomex | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
---|---|---|---|
Bag Diameter: | 150mm | Cage Diameter: | 138mm |
Bag Length: | TBD | Cage Length: | TBD |
Delivery Date: | Negotiable | Origin Of Place: | China |
Price: | Negotiable | Payment Terms: | Negotiable |
High Light: | 150mm aramid filter bag,star aramid filter bag,pleated nomex filter bag |

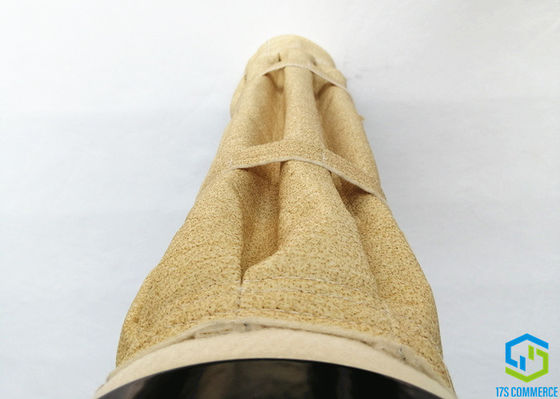

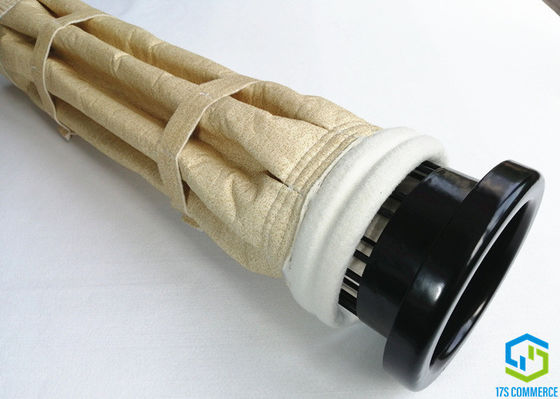

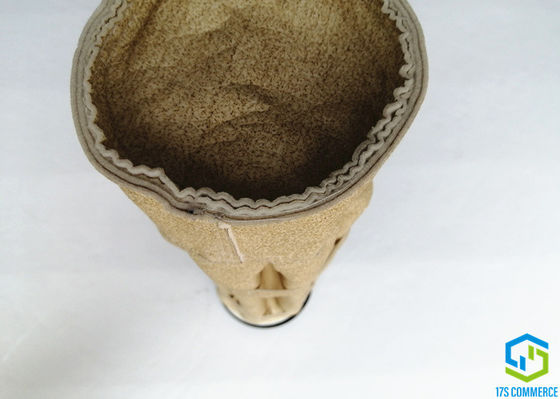

Aramid Star Bag And Star Cage Energy Consumption And Maintenance Cost Reduce Nomex Bag 150 Pleat Bag And 138 Pleat Cage

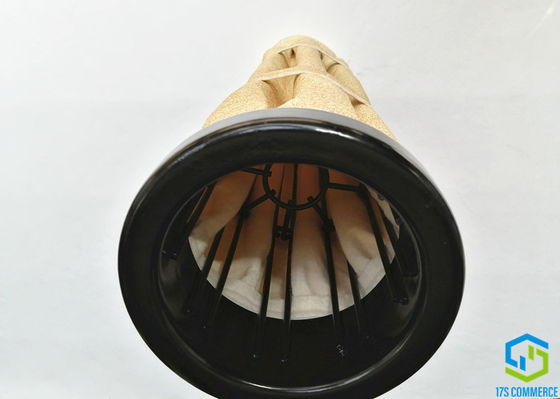

1. The Match of Star bags and Cages
Now with new star/pleat bag technology, we can help you increase your dust collection requirement with a simple change from filter bags to pleated/star filter bags.Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.Our pleated/star filter bags are engineered to deliver solutions for most common baghouse problems. This simple change will improve production, reduce pressure drop, increase collection efficiencies and reduce filter changeouts and maintenance time.Our Pleated/star filter bags and cages provide options for undersized collectors without having to increase the footprint of your current collector.
Match Of Star Bags and Star Cages
Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
cage | bag | |||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 | |||
12 pleats | 12 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
10 pleats | 10 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 |
2. How to choose star filter bags
Main features of the performance of star bags
Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
Continuous Dry Heat Operation | 94℃ | 135℃ | 135℃ | 190℃ | 204℃ | 240℃ | 260℃ | 260℃ | |
Continuous Moist Heat Operation | 94℃ | 94℃ | 125℃ | 190℃ | 177℃ | 195℃ | 260℃ | 260℃ | |
Max Short Term Dry Heat | 107℃ | 150℃ | 150℃ | 232℃ | 240℃ | 260℃ | 290℃ 4 | 290℃ | |
Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
Moisture Regain (20℃ and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
Supports Combustion | yes | yes | yes | no | no | no | no | no | |
Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good |
1)Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82℃
2)PPS is attacked by strong oxidising agents (O2, NOx, Br2) – the presence of which, lower its recommended operating temperature
3)P84 is attacked by Sox in power station applications
4)PTFE will elongate under load at elevated temperature
3. Pack of Star/ pleat Cages
