Product Details:
|
Felt Material: | P84 | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
---|---|---|---|
Bag Diameter: | 150mm | Cage Diameter: | 138mm |
Bag Length: | TBD | Cage Length: | TBD |
Delivery Date: | Negotiable | Origin Of Place: | China |
Price: | Negotiable | Payment Terms: | Negotiable |
High Light: | Industrial P84 filter bag,150mm Industrial Filter Bags,Pleated Industrial Filter Bags |

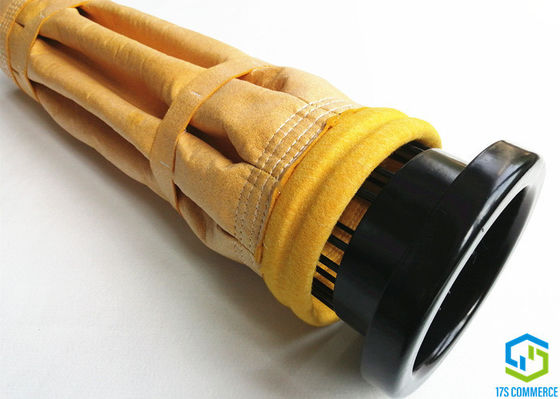

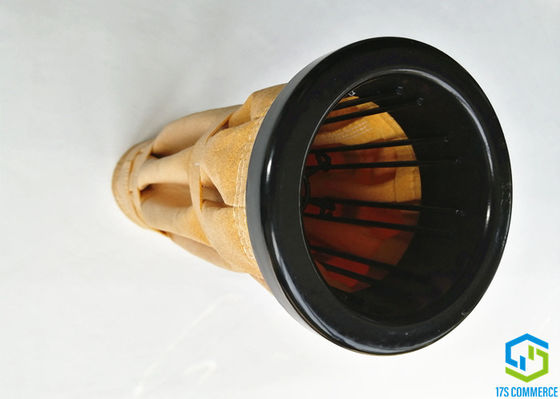

P84 Star Bag And Star Cage Energy Consumption And Maintenance Cost Reduce Bag 150 Pleat Bag And 138 Pleat Cage
1. The Match of Star bags and Cages

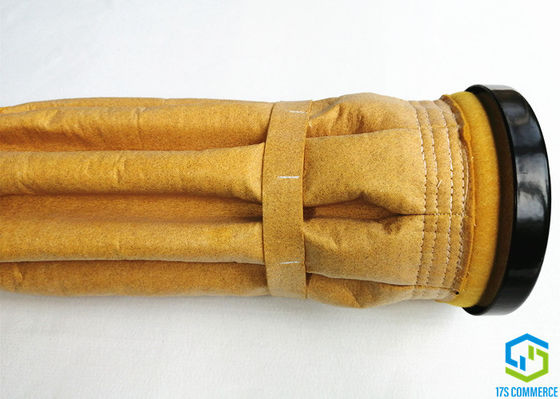

The filter pleat/star bags have bands to hold the star-shape stable and to prevent the filter bag from expanding too much during the pulse-jet or reverse air cleaning cycle. The bands are placed around the filter star/pleat bag and calculated intervals along the length of the bag,normally 250mm distance. The smaller circumference of the band is co-related to the large circumference of the filter element by setting points at regular lengths on both the band as well as the bag. The points of star bags are joined together by sewing, gluing, welding or other techniques.

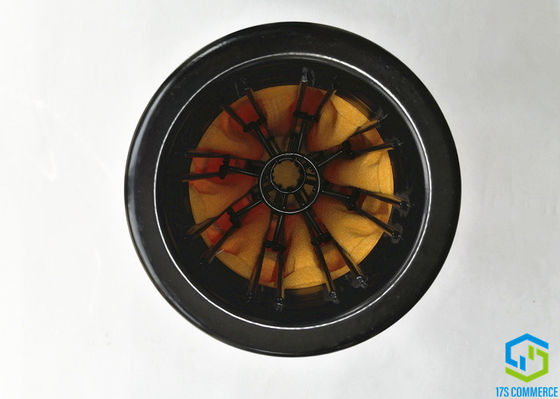

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
cage | bag | |||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 | |||
12 pleats | 12 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
10 pleats | 10 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 |
2. How to choose star filter bags
Main features of the performance of star bags
Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
Continuous Dry Heat Operation | 94℃ | 135℃ | 135℃ | 190℃ | 204℃ | 240℃ | 260℃ | 260℃ | |
Continuous Moist Heat Operation | 94℃ | 94℃ | 125℃ | 190℃ | 177℃ | 195℃ | 260℃ | 260℃ | |
Max Short Term Dry Heat | 107℃ | 150℃ | 150℃ | 232℃ | 240℃ | 260℃ | 290℃ 4 | 290℃ | |
Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
Moisture Regain (20℃ and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
Supports Combustion | yes | yes | yes | no | no | no | no | no | |
Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good |
1) Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82℃
2) PPS is attacked by strong oxidising agents (O2, NOx, Br2) – the presence of which, lower its recommended operating temperature
3) P84 is attacked by Sox in power station applications
4) PTFE will elongate under load at elevated temperature
3. Pack of Star/ pleat Cages
